1.8X2.5m Garrison Steel Picket Fence Panel | Steel Picket Fence Factory Garrison, Hercules Fence

Name: 18X25m Garrison Steel Picket Fence Panel Steel Picket Fence Factory Garrison Hercules Fence
Brand: Perth Fencing
Price: 48.88 USD

Cheap 1.8X2.5m Garrison Steel Picket Fence Panel | Steel Picket Fence Factory Garrison, Hercules Fence wholesale

Brand Name : Perth Fencing

Model Number : Perth Steel Fence-1200mm-1500mm-1800mm-2100mm-2400mm

Certification : AS/NZS1163& AS/NZS4506-1998

Place of Origin : New Zealand And Australia Design

MOQ : 150

Price : 48.88$

Payment Terms : TT 30% deposit balance 70% at sight of done cargo

Supply Ability : 90001

Delivery Time : 7 days

Packaging Details : Metal Pallet With Plastic Jacket

Materials : Q235

Color : Black and Grey or other

Dimensions : 1800mm x 2400mm ,2100mm x 2400mm or Customized

Salt Spray Testing : Pass

Treatment : Powder Coated ,Hot Dipped Galvanized

Technical : Punch Pipes and Welding etc

Nick Name : Steel Fence ,Steel Tubular Fence ,Steel Spear Fence,Garrison Fence,ornamental steel fence

Upright Pipes : 25mm x 25mm x 1.20mm,1.50mm ,1.6mm etc

Rails : 40mm x 40mm x 1.60mm,2.0,2.5mm ,3.00mm

Post : 65mm x 65mm x 2.00mm x 3000mm

Popular : Powder Coated Stain Black

Apllication : Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence

Accessoires : 1pcs post caps,4 pcs bracket ,16 pcs self drilling screw

Contact Now

1.8X2.5m Garrison Steel Picket Fence Panel | Steel Picket Fence Factory Garrison, Hercules Fence

Steel Picket Fence is a steel security fencing system designed to provide strength and security while avoiding the industrial look associated with other fencing products like chain-wire fencing.

Garrison Metal Fencing looks good and will enhance the value and appearance of your property. With such a wide range of customizable options available, this is one of the most popular security fences used in Australia Market.

Garrison Fencing is ideal for

Fencing where a medium level of security is important.
Commercial and Industrial security fencing applications
Schools, Power-stations, Government projects

Technical Information of LN Steel Picket Fence

Constructed from heavy duty tubular steel, LN Garrison Fencing is pre-galvanised and powder coated to ensure strength, durability and value-for-money.

Standard Garrison Fencing size(s)
Pickets	Rails	Posts	Gate Posts
20 x 20 x 1.0 (mm)	40 x 40 x 1.5 (mm)	60 x 60 x 2.5 (mm)	100 x 100 x 3.0 (mm)
Pickets Spacing	Panel Height	Panel Width	Finish
130mm C/C	1.2/1.5/1.8/2.0/2.5m	2.0/2.5/3.0m	Powder coated to you colour choice

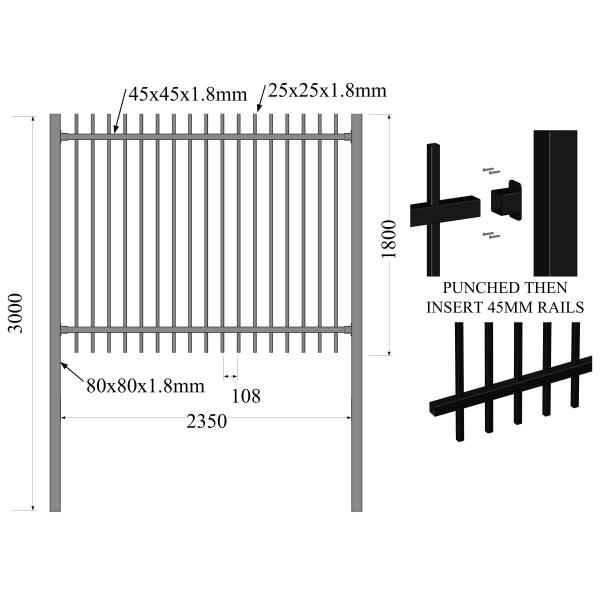

Drawing of Steel Picket Fencing

Custom designs are available and all Garrison gates can be; Swing Gates or Sliding Gates with manual or automatic openings.

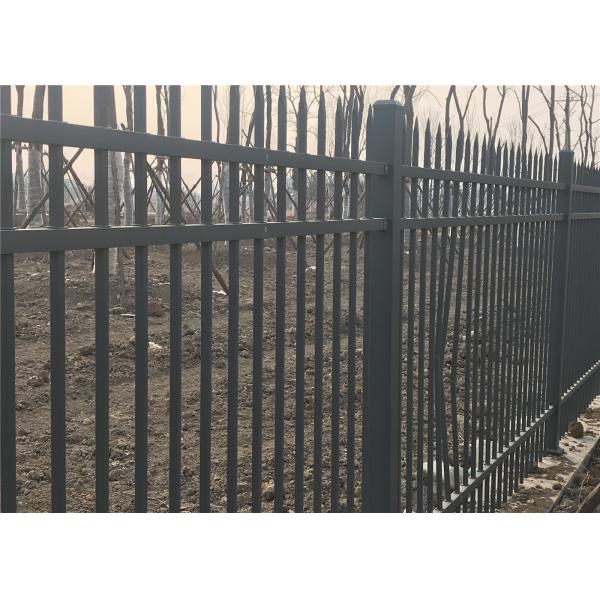

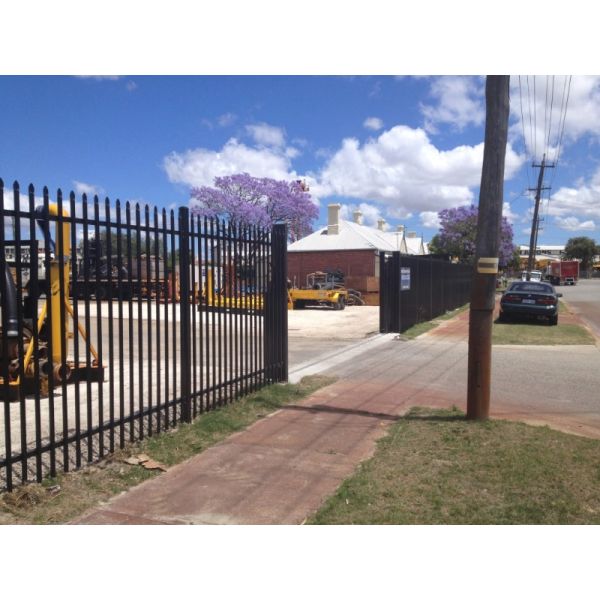

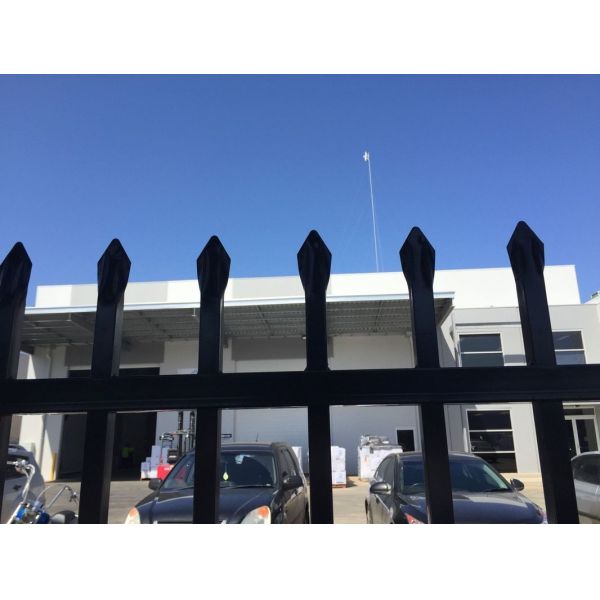

Reference Photos


Ornamental Metal Fence	Ornamental Metal Fence

China Metal Fence (Factory)	China Metal Fencing Rail

Galvanised Metal Rail	Galvanised Metal Fencing Rail

TOLERANCE SHEET

HEIGHT / WIDTH / LENGTH

< 1000mm

1000mm ~ 2000mm

2000mm ~ 3000mm

> 3000mm

± 5.00mm

± 10.00mm

± 15.00mm

± 20.00mm

PANEL WIRE THICK

1.0mm~2.0mm

2.0mm~4.0mm

> 4.0mm

± 0.10mm

± 0.15mm

± 0.20mm

POST WALL THICK

< 2.0mm

2.0mm ~ 4.0mm

> 4.0mm

± 0.10mm

± 0.15mm

± 0.20mm

HOT DIPPED GALVANIZED

50 ~ 100g/m2

100 ~ 300g/m2

300g/m2

505g/m2

± 10g/m2

± 20g/m2

± 30g/m2

± 50g/m2

MESH SIZE

< 40mm

40mm ~ 70mm

70mm ~ 100mm

> 100mm

± 1.5mm

± 2.00mm

± 2.50mm

± 3.00mm

1.8X2.5m Garrison Steel Picket Fence Panel | Steel Picket Fence Factory Garrison, Hercules Fence Images
