Prison fence anti-climb security fencing/358 welded wire fence

Name: Prison fence anticlimb security fencing358 welded wire fence
Brand: LNF-ClearVU Wire Fence
Price: 18.88 USD

Cheap Prison fence anti-climb security fencing/358 welded wire fence wholesale

Brand Name : LNF-ClearVU Wire Fence

Model Number : 3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 18.88$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 Steel

Mesh Opening : 3" x 0.5" x 8gague wire,12.70mm x 76.20mm

Diameter : 4.00mm ,3.00mm

Size : Available Customized

Color : All RAL color card

Treatment : Hot Dipped Galvanized Or Powder Coated

V Beams : Available

Sample : Free but pay freight cost

Accessoires : Clamp,Post ,Y arm for barb wire

Feature : Anti ,Resistant ,Cut ,Climb

Main Market : Africa ,Oceania ,Aisa

Salt Spray Test : Pass

Contact Now

Prison fence anti-climb security fencing/358 welded wire fence

358 Fence / High security fencing, as a kind of anti-anti-climb and anti-cut fence barrier, is extremely difficult to penetrate or attack using conventional hand tools. The panels have small apertures which prevent foot and finger holds making it anti-climb with excellent visibility and resistance to vandalism. High weld strength at each intersection makes the fence strong and durable. It is designed to provide security and protection for industrial and commercial properties and public utilities. As well,it is suitable for military, airport, prison or security units, if together with electronic alarm and detection systems.

Panels

Prison fence anti-climb security fencing/358 welded wire fence

358 security mesh fence made from a type of strong welded mesh panel with small mesh opening. It is extremely difficult to penetrate and difficult to attack using conventional hand tools. Has the features of anti-climbing and anti-cutting. The fence name 358 comes from its panel mesh opening 3" × 0.5" × 8 gauge - approximate to 75mm × 12.5mm × 4mm mesh openning. This mesh fencing is for high security applications, though is also often used for lower security applications for peace of mind. The very small apertures mean that it is not possible for any would-be intruder to get a finger or toe hold for climbing, or indeed for getting a cutting tool into.

The panels are made of heavy mesh with a high level of security in width 2515mm and a height of 2007mm to 3302mm. Several panels can be installed on top of each other. Thus may be achieved a total height of 6300mm.

Mesh pattern: 75mm (3") × 12.5mm (0.5") resistance welded well at each intersection
Wire diameter: 4mm horizontal wire and vertical Wire.
Weld strength: range 540-690 N/m2
Surface treatment: 358 mesh fence panels made from hot dipped galvanized steel wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
Installation: Overlapped 75mm minimum at each post (shown as the below photo) for securing with slotted clamp bars and M8 diameter bolts.

Post

Posts are made from steel hollow sections to suit the height of the mesh fence panels, with the mesh overlapped and secured with full length clamp bars and security fixings.

Material: high grade steel for maximum strength and rigidity.
Post section: 60×60mm,80×60mm, 80×80mm or 120×60mm.
Post Plate thickness: 2.5mm or 3.0mm.
Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ).
Post cap: 80×60mm and 120×60mm post with metal caps, and 80×80mm post with plastic cap.
Metal clips and clamps are hot dip galvanised then powder coating in green or black color.

Colors

Linkland 358/Security Fence can be supplied in all colors according to international standard RAL Colors, the popular colors as below:

Coating and Warranty

The High security fence are manufacturedusing galvanized steel wire with super-durable powder coating assures a long service life for the fence system. Our powder coating material is the top brand like AkzoNobel, which provides the industry's Highest Weather-ability and Gloss Retention in U.V. exposure, and is backed by our 10-year Manufacturer’s Warranty.

Specifications of LINKLAND™ 358 Fence/ High Security Fencing

Panel Size (Height × Width)	Fence Post (Height × Size × Thick )	Clamp Bar (Height × Width × Thick )	Inter or corner Clamp No (PCS)
2007mm ×2515mm	2700mm ×60×60×2.5mm	2007mm×60mm ×5.00mm	7 or 14
2400mm× 2515mm	3100mm×60×60×2.5mm	2400mm×60mm ×5.00mm	9 or 18
2997mm×2515mm	3800mm×80×80×2.5mm	2997mm×80mm ×6.00mm	11 or 22
3302mm ×2515mm	4200mm×80×80×2.5mm	3302mm×80mm ×6.00mm	12 or 24
3607mm ×2515mm	4500mm×100×60×3.0mm	3607mm×100mm×7.00mm	13 or 26
3607mm ×2515mm	4500mm×100×100×3.0mm	3607mm×100mm×7.00mm	13 or 26
4204mm × 2515mm	5200mm×100×100×4.0mm	4204mm×100mm×8.00mm	15 or 30
4496mm × 2515mm	5500mm×100×100×5.0mm	4496mm×100mm×8.00mm	16 or 32
5207mm ×2515mm	6200mm×120×120×5.0mm	5207mm×100mm×8.00mm	18 or 36

*Customized color and size are available, OEM orders are welcomed!

Material: low carbon steel wire
Wire Dia: 4mm, 5mm
Mesh Hole: 76.2 x 12.7mm ,75x13mm
Height: 2400mm, 2500mm, 3000mm
Width:2500mm,3000mm
Surface Treatment: hot dipped galvanized, galvanized and powder coated, PVC coated
Features:
1)Anti-climb: More small openings make it difficult to climb and penetrate.
2) Anti-cut: Robust wire and welded joints make it impossible to be
cut by conventional wire cutters

Panels			Posts
Fence	Panel Size	section	O/A Length	Total number of fixings
Height m	Height/Width mm			Inters- 1 Clamp bar	Corners- 2 Clamp bars
2.0	2007 x 2515	60x60x2.5mm	2700	7	14
2.4	2400 x 2515	60x60x2.5mm	3100	9	18
3.0	2997 x 2515	80x80x2.5mm	3800	11	22
3.3	3302 x 2515	80x80x2.5mm	4200	12	24
3.6	3607 x 2515	100x60x3mm	4500	13	25
3.6	3607 x 2515	100x100x3mm	4500	14	2

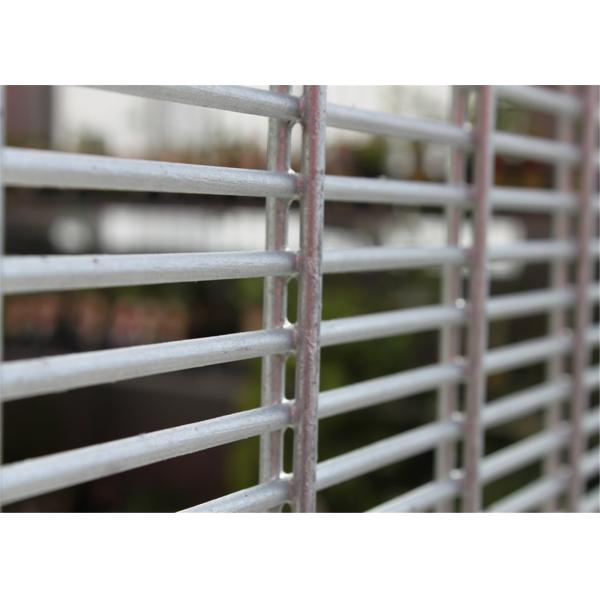

Prison fence anti-climb security fencing/358 welded wire fence Images
